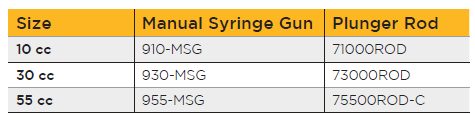

Manual Syringe Gun

Manual Syringe Gun

  • Lightweight barrel applicator gun
  • Provides excellent control for medium/high viscosity products
  • Easy to use - no dripping or mess

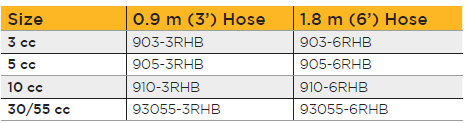

Receiver Head Assembly

  • Connecting link between time/pressure controllers & Syringe assemblies
  • Provides a safe connection for accident proof dispensing
  • Available with 0.9 m (3’) and 1.8 m (6’) length of tubing
  • Includes: receiver head with O-ring, tubing and male quick connector
  • Receiver heads are made of Delrin®
  • Sold individually

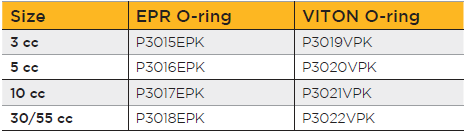

Replacement 0-rings for Receiver Head

Finger Switch Assembly

Use with Metcal dispensers and syringes in place of a foot pedal
Provides control at your finger tip

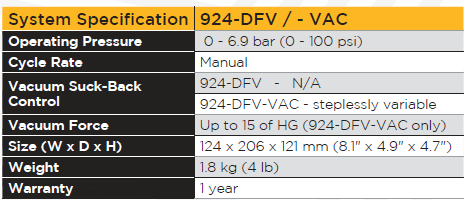

924-DFV Series

Foot Valve Dispenser offers increased production combined with dispenser
economy. Floor mounted, they have a built in pressure regulator, pressure gauge and a unique fast-dump, three-way air valve. Output rate and shot size are operator controlled.
The 924-DFV is the ideal basic dispensing unit for most general applications of adhesives, sealants, coatings and compounds.
The 924-DFV-VAC features a vacuum suck-back to prevent very thin materials from dripping to reduce tailing or stringing with thicker materials.

Vacuum Pencil

Use for pick and place function
Stand-alone vacuum pick-up requires shop air
Optional Mixed Kit of Vacuum Cups also available
