Mini-Ray MK4 Heating Tool System

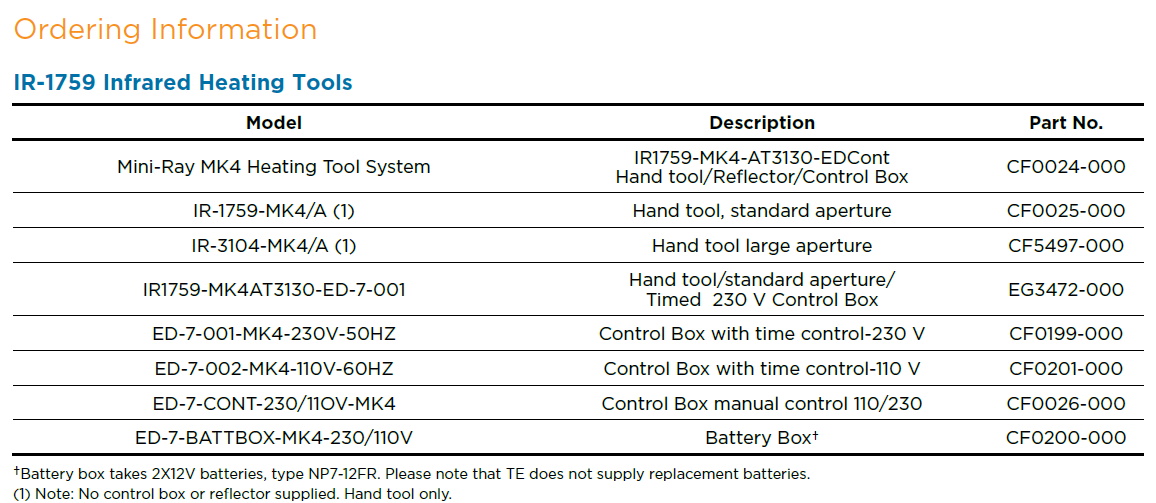

CF0024-000

The Raychem Mini-Ray MK4 tool from TE is a hand held infrared heating tool designed for use in installing SolderSleeve
termination products. The tool is portable, lightweight and convenient for use where workspace is restricted.
The hand tool is fan cooled and has low heat emission as the lamp is only energized on demand. A duty cycle up to 50% is permissible with a maximum heating time of 50 seconds. With the ED-7-Cont and ED-7-Batterybox, this duty cycle is fixed within the controller software.
The controllers have a new software feature that improves filter and bulb life. The heat energy is derived from a halogen lamp and is focused onto the product by means of the reflector design. The IR-1759-MK4/A standard aperture is recommended for products up to 6 mm diameter and the IR-3104-MK4/A large aperture for products up to 9 mm diameter. This version of the tool will accept larger diameter components, but uniform heating is not then assured.
